K9 BK7 Optical Dome

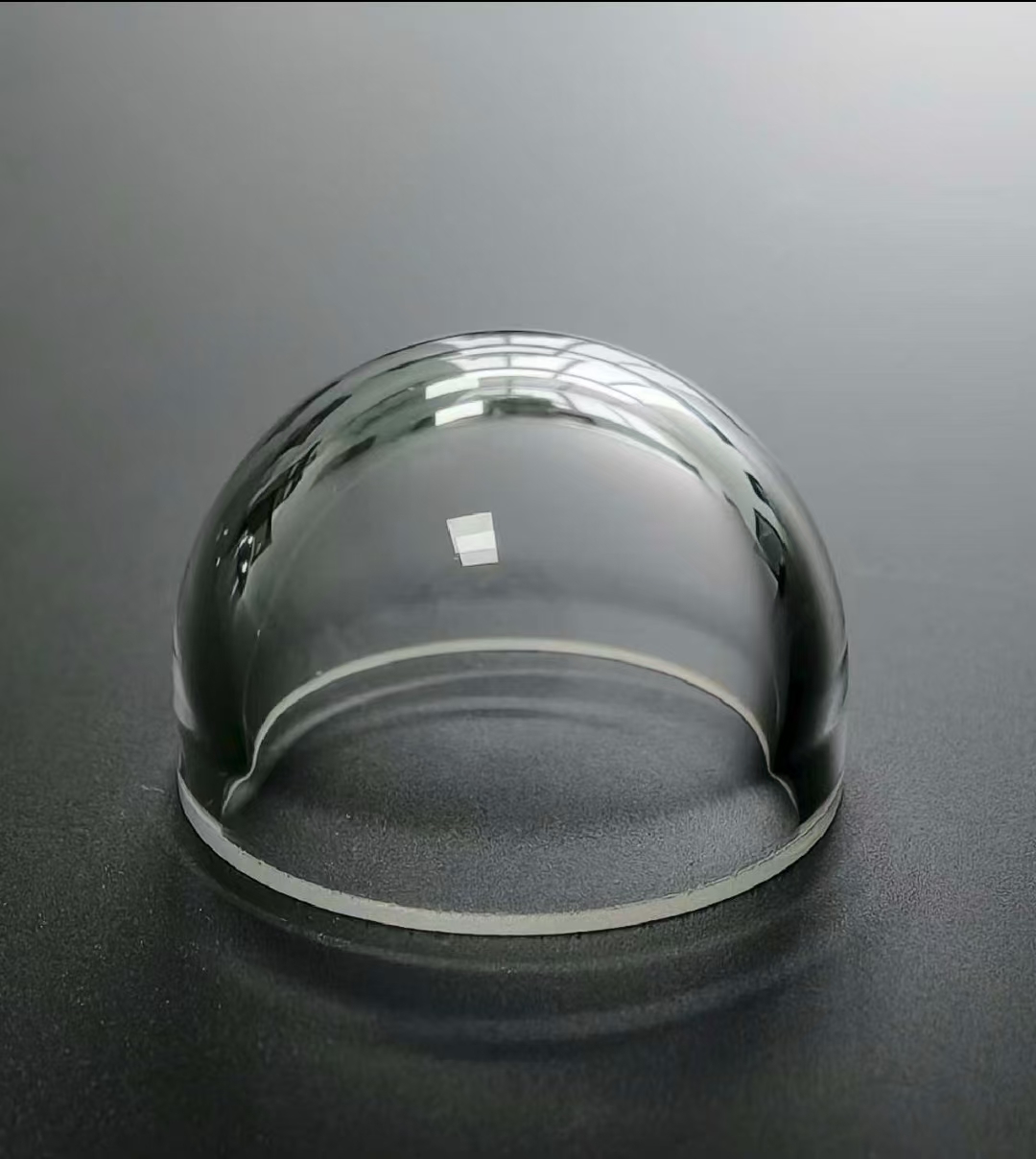

The K9 BK7 optical dome is a hemispherical optical glass window dome lens. Coligh customs and manufacturer K9 BK7 optical dome in China.
- High Transmittance to exceeds 90%.
- Surface accuracy up to λ/10 f
- Flexible Customization
- Support versatile Dome Structures
- Direct Manufacturer Supply
K9 BK7 Optical Dome Description
- Compared to ordinary optical protective glass, optical domes offer a wider market reach and better uniformity.
- K9 and BK7 materials themselves have high transmittance, and the materials we select have fewer bubbles and impurities. Uncoated visible light transmittance can reach over 90%, and after applying an anti-reflective coating, the transmittance will be even higher.
- As a source manufacturer of optical domes, we produce according to customer drawings and can process dome products of different diameters, thicknesses, radii of curvature, and coatings.
- Our customized dome surface accuracy can reach λ/10, resulting in clear imaging.
- We can provide flexible customization of domes from 10-300mm and also support the processing of stepped domes, flanged domes, and open domes.
Large K9 BK7 Optical Domes Detail Display
K9 BK7 Optical Domes Custom Capability
| Customization Capability | K9 Optical Domes | BK7 Optical Domes |
| Material | Optical Glass K9 | Optical Glass BK7 |
| Diameter Range | 10–300 mm | |
| Custom curvature | hemisphere, hyperhemisphere, aspherical, irregular spherical | |
| Surface Accuracy | Up to λ/10 | |
| Surface Quality | 80-50,60-40,20-10 Customized |
|
| Clear Aperture | According to drawing | |
| Thin film Coating | Anti-reflective coatings, waterproof coatings , antifouling coatings , diamond-like carbon (DLC) coatings, ITO conductive films, etc. |
|
| Dome Structure | Steps, flanges, drilling, grooving, edge grinding, chamfering | |
K9 BK7 Optical Domes Applications
Underwater Cameras
Ordinary glass windows suffer from significant refraction and image distortion due to the high pressure, corrosion, and light attenuation in the underwater environment. The K9 and BK7 optical domes utilize a hemispherical structure, allowing optical fibers to be incident almost perpendicularly, reducing imaging problems caused by underwater refraction. They are also highly pressure-resistant, suitable for deep-water operations.
Outdoor Cameras
Outdoor cameras need to withstand rain, dust, and ultraviolet radiation. Ordinary flat glass accumulates dust and causes feedback. The K9 and BK7 optical domes provide a wide field of view and are self-cleaning. They can be used for rain and dust protection.
LiDAR Protective Housings
LiDAR and infrared sensors must withstand the impact of outdoor dust and moisture. Using the K9 and BK7 optical domes as protective housings for LiDAR or sensors allows both laser signal transmission and reception to be completed within the optical dome.
